A22
A22

Mechanism type : A type
Operation : Wire control
Recline angle : 90°-120°-140°
Back tilt : 3 Stages
Structure of mechanism : Two springs system
Operation of back tilt strength : Sided adjust
Material : Aluminum

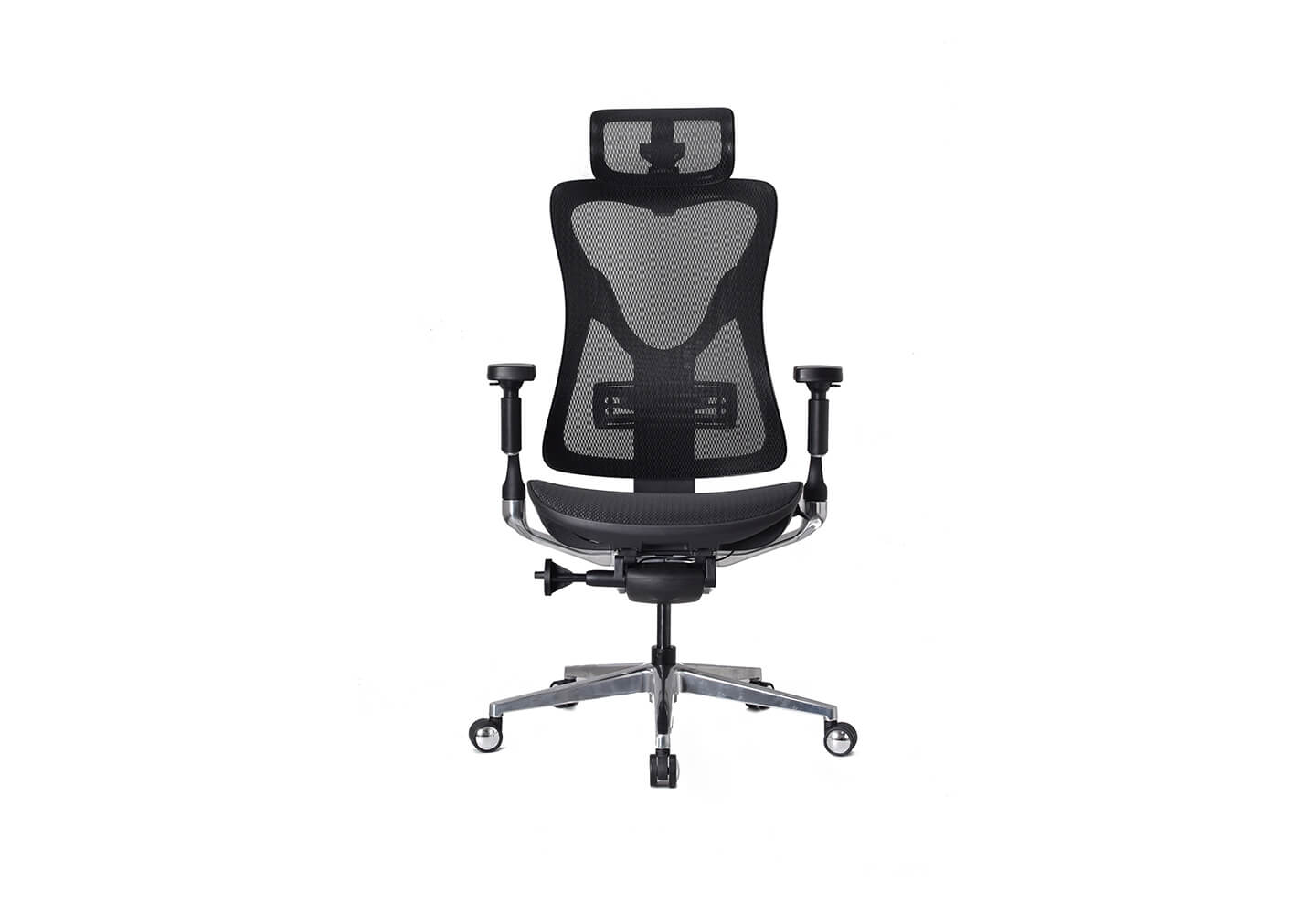

Model A22 Ergo Office Chair features


3D headrest 6D adjustment
Seat depth adjustment
Headrest height adjustment
Seat height adjustment
Backrest height adjustment
Backrest tilt angle adjustment
Arm-pad inward & outward adjustment
Arm-pad forward or backward & Armrest height adjustment
Backrest flexible tilt tension adjustment

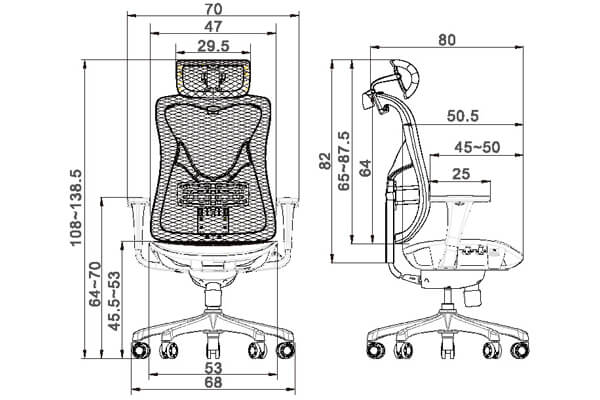

Model A22 Ergo Office Chair details
FUNCTION

3D Headrest

  • Main part of headrest can be adjusted forward, backward, up and down. And the angle can be adjusted from 0°~90°.

Back

  • Back height can be adjusted in 5 stages.

3D armrest

  • Armrest height can be adjusted in 5 stages with 6cm distance.
  • Arm pad can be adjusted forward/backward.
    And it can be adjusted left and right.

Seat

  • Back tilt lock in 3 stages.
  • Seat slide can be adjusted in 3 stages.
  • Seat height can be adjusted in 10cm distance.
  • Back tilt strength can be adjusted.
MATERIAL
  • Chair structure: Nylon with Glass Fiber.
  • Mesh: High elastic mesh
  • Armrest: Nylon with Glass Fiber
  • Arm pad: PU
  • Mechanism: Metal and aluminum.
  • Gas lift: level 4 gas lift.
  • Caster: Nylon with Glass Fiber.
  • Base: Nylon with Glass Fiber or Aluminum.
Model A22 Ergo Office Chair accessory
accessory
Armrest
Headrest
Base
Joyrest
FR-01
Base
